v1.0 · Blender 4.2+ · GPL-3.0

Wrap any topology onto any shape

BWrap is one-click non-rigid mesh wrapping for Blender: conform your template topology onto scans, sculpts and stylized characters. Place point pairs, press Wrap — a production-grade N-ICP solver, tuned against per-vertex ground truth, does the rest.

One-time purchase from $25 · free version available · you get the source (GPL)
bwrap_hero_loop.mp4
1280 × 880 · dual-pane wrap in progress, cyan/amber point pairs
Features

A complete wrapping workflow — not just a solver

Everything between "two meshes" and "perfect conform" lives in one sidebar tab: placement, wrapping, weighting, refinement and review.

bwrap_feat_points.mp4
1280 × 720 · point placement & mirroring

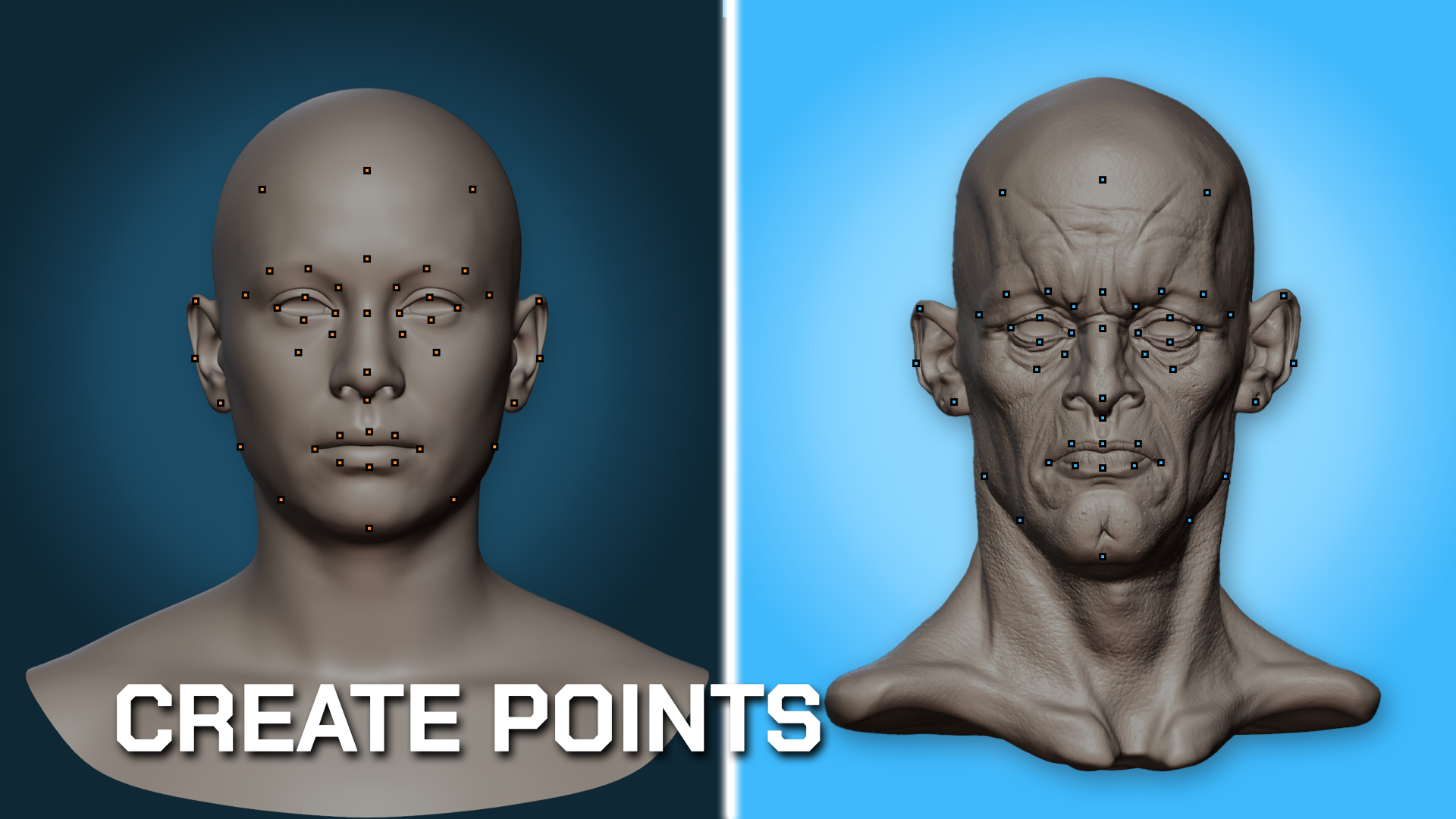

PTS-01 / POINT PAIRS

Landmarks that stay manageable at 100+

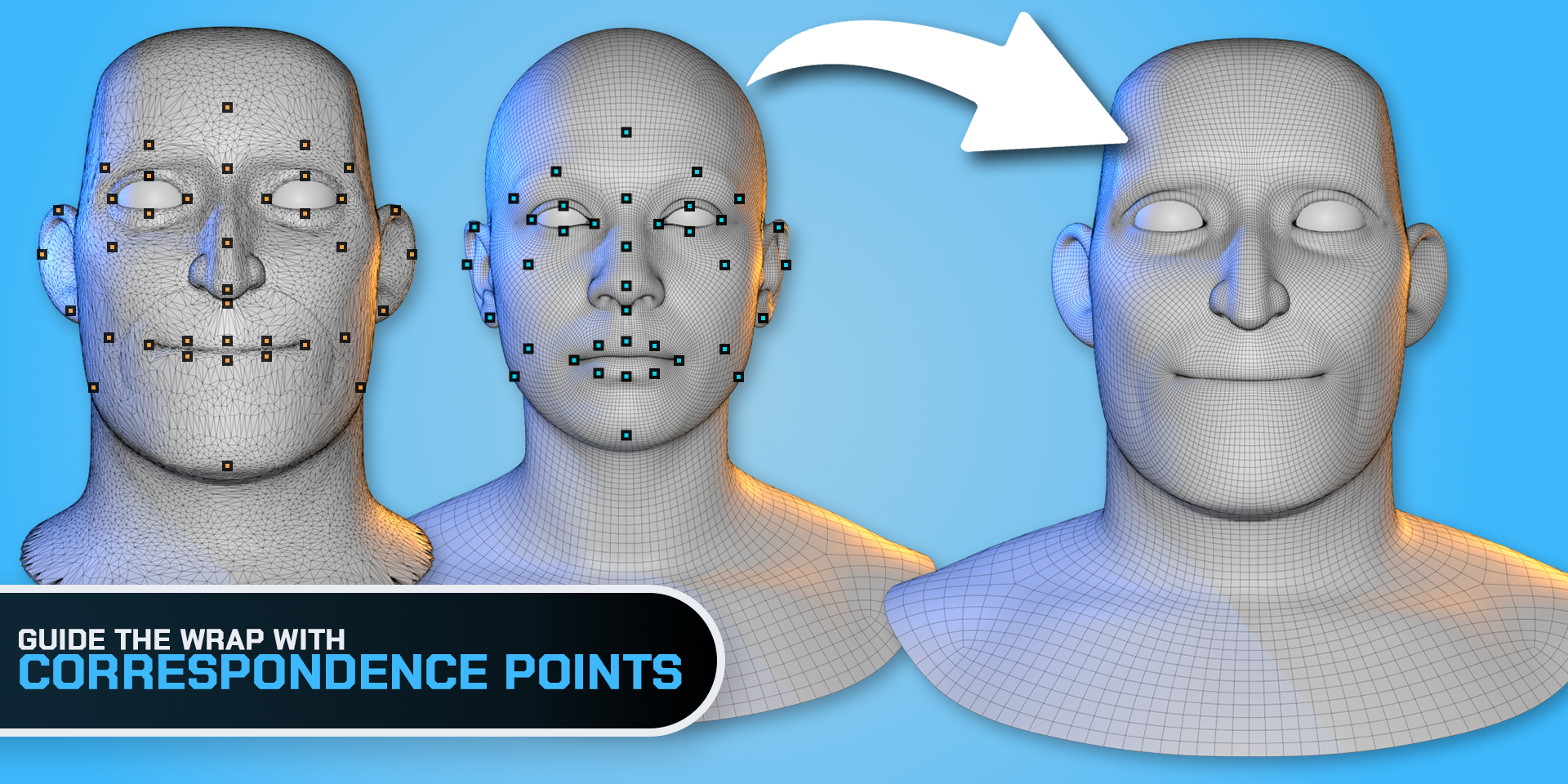

Corresponding points on template and target steer the wrap. The tooling assumes production counts, not toy demos:

  • Add / Adjust modes, Shift for fast batches, X-centerline snap
  • Box-select with delete and modifier keys; Weld Points; snap to X=0

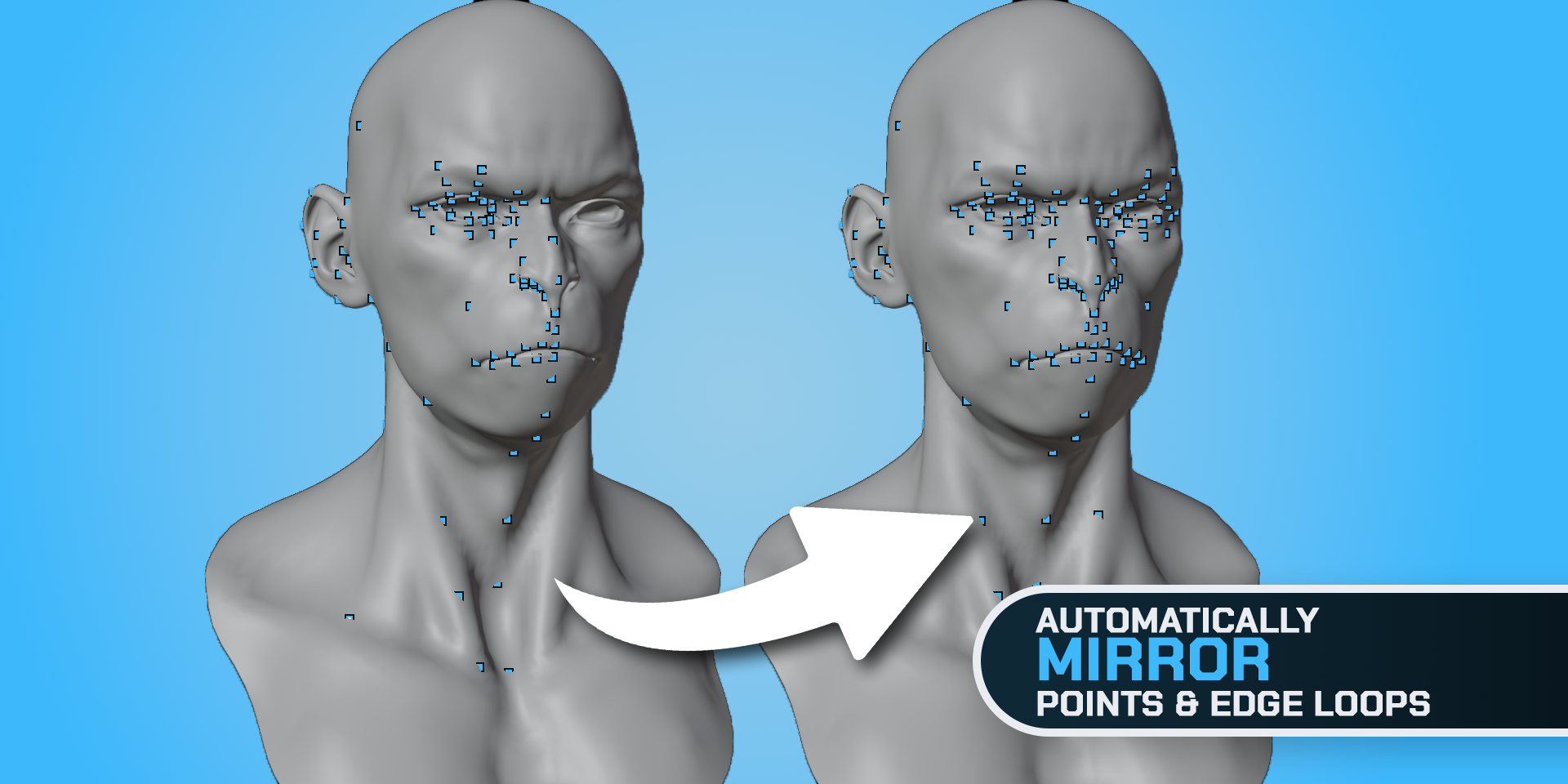

  • Idempotent Mirror Selected / Mirror All
  • Save / Load point sets as JSON — reuse landmarks across jobs
bwrap_feat_wrap.mp4
1280 × 720 · Fast / Balanced / Best
WRAP-02 / SOLVER

An N-ICP engine tuned on real character data

Symmetric solving, fold-aware matching, correspondence-continuity filtering, a capture phase and an untangle pass — tuned against per-vertex ground truth. Three presets (Fast / Balanced / Best) cover blockout to final, and a Conform Strength slider blends between the target's shape and your template's.

bwrap_feat_groups.mp4
1280 × 720 · weight groups

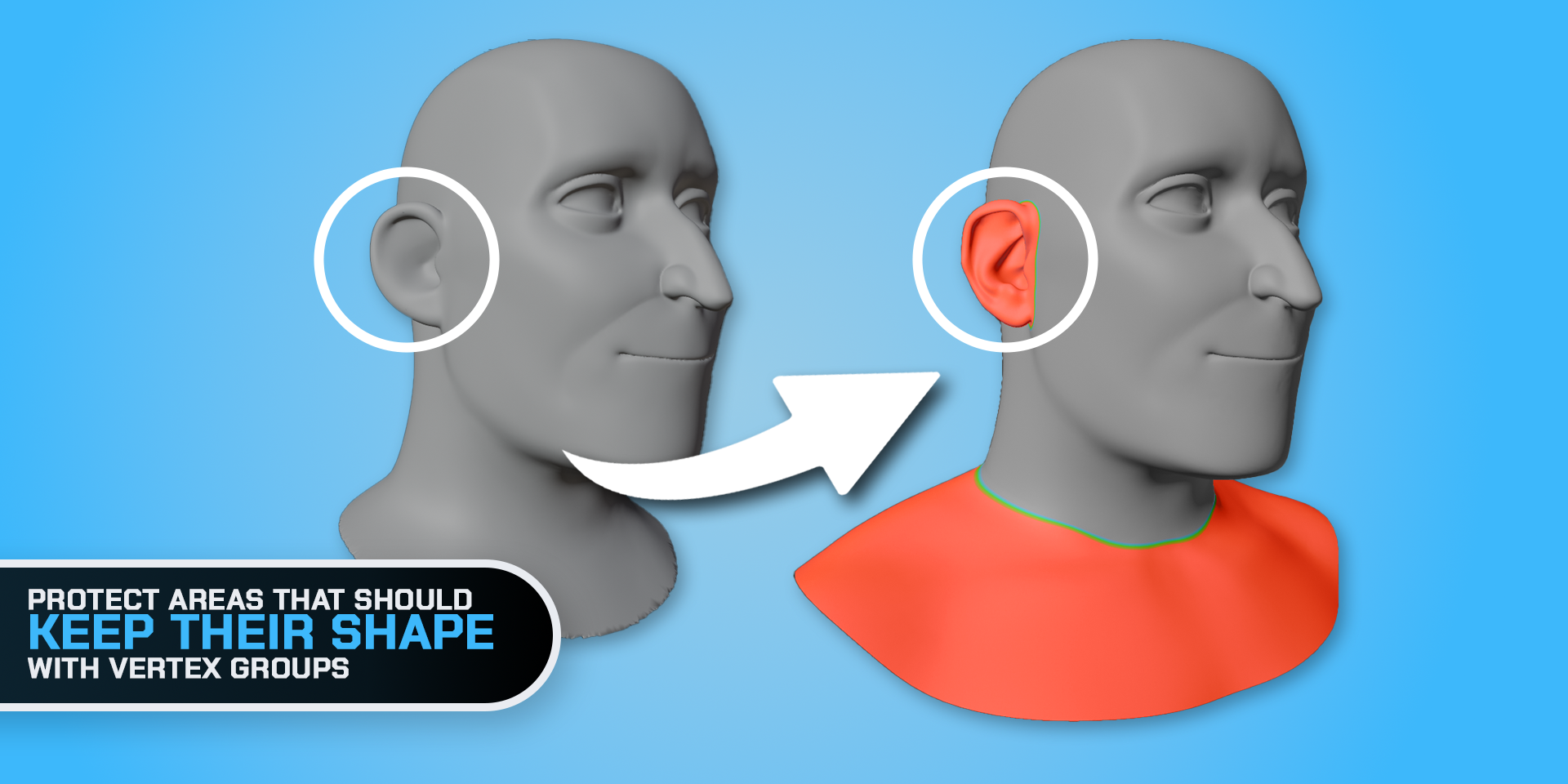

GRP-03 / WEIGHT GROUPS

Tell the solver where not to look

Exclude regions entirely, keep a region's shape while it rides along, or lock vertices in place — with Detect Interior finding mouth bags and eye sockets for you, plus ready-made exclusion presets. Snap Open Edges makes boundaries follow the target's open edge.

bwrap_feat_refine.mp4
1280 × 720 · refine pass
RFN-04 / REFINE

Fix the last 2% without leaving the tool

Conform Points to Wrap re-seats your landmarks for iterative wrapping; a live Nudge brush (Shift to smooth, Ctrl for free movement) and a radius-free Nudge Points mode interpolate corrections between landmarks — with X-symmetry throughout.

1280 × 720 · dual-pane review
VIEW-05 / REVIEW

A workspace built for judging wraps

A dedicated dual-pane BWrap workspace with synced views, per-pane wireframe toggles, in-front point drawing and name display — so template and target are always one glance apart.

Get BWrap

Free to try. From $25 to own.

BWrap Free

The complete point workflow and workspace plus Fast-quality wrapping, applied directly to your mesh — locked features stay visible, so you know exactly what the full version adds. Full: $25 Individual, $99 Indie Team (5 seats), $299 Enterprise — every tier is the complete addon.
